BROAD SPECTRUM CARVE (BSC)
The ultimate all-rounder, and the place to start your foiling journey.
The BSC front wing range in bigger sizes fit on Red series fuselage 1120, 1060 and 970. Then the 890, 810 and 740 all fit on B-series. We feel the B-series is a perfect way to get started in wing foiling as they are forgiving, stable, have early lift off but still has plenty of performance. The smaller B series front wings have thinner chord and have a real performance in strong winds and work superbly in waves.
Available in the following sizes:
- Red Series BSC 1120 x 220mm
- Red Series BSC 1060 x 200mm
- Red Series BSC 979 x 190mm
- Black Series BSC 980 x 170mm

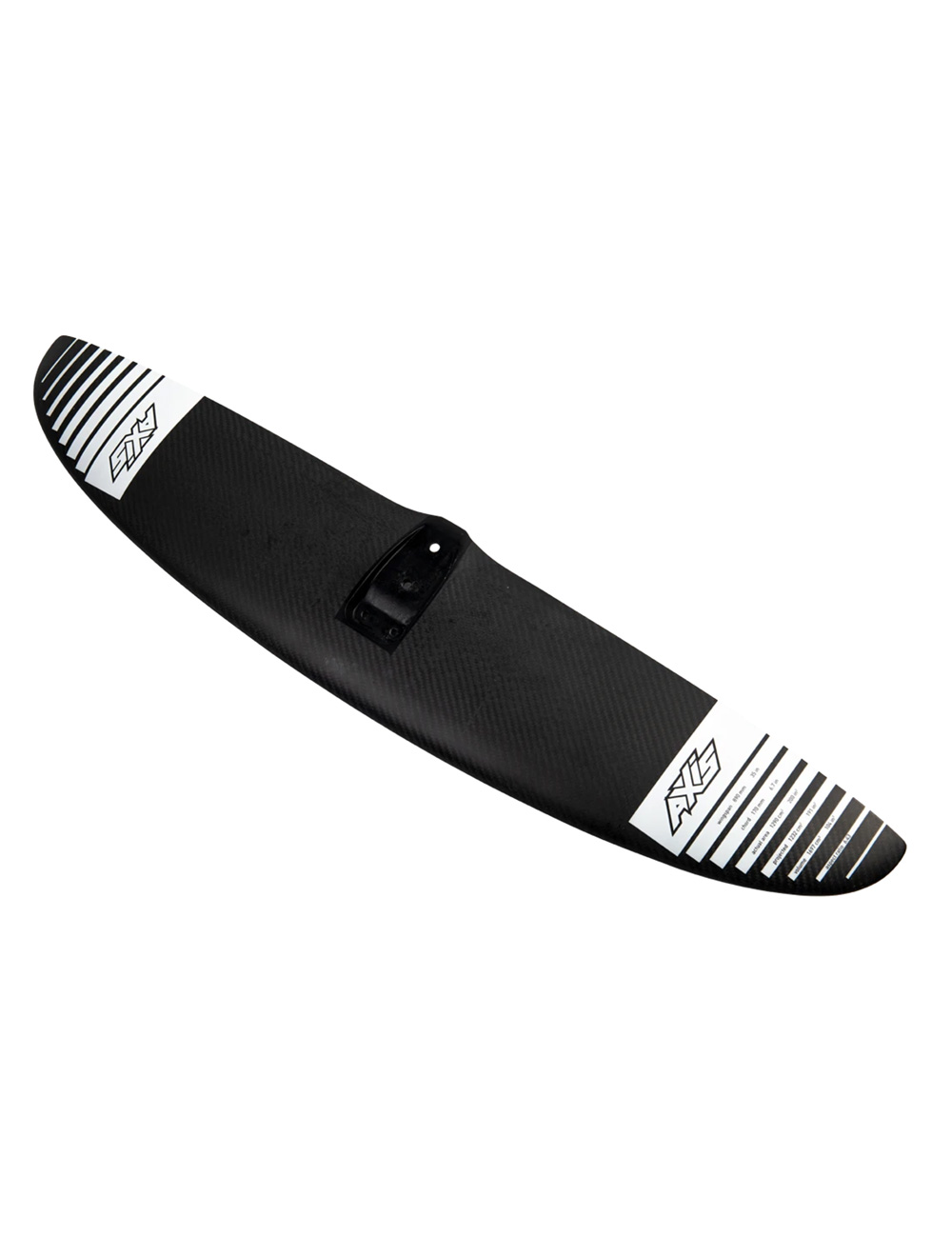

- Black Series BSC 810 x 155mm
- Black Series BSC 740 x 140mm
Our Original Series (1020, 920, 820) performed admirably during the first generation of foiling water sports and are still ideal beginner foils. When it was time to replace this model, we set out to significantly improve speed and range, without losing the easy lifting properties we all loved about the original series.
For the BSC range we completely changed the outline, increasing aspect ratio and reducing thickness for vastly improved speed and glide, while incorporating what we had learned from the HPS project in turn down and twist for optimum turning. However, like the Original, we developed a foil section with a high stall angle. This means it still operates well at slow speeds, so will be forgiving when you make a mistake gybing on a Wind foil or Wing foil. It will also get you up easily and keep you foiling when surfing slow or weak waves.
The result is a foil that has an incredibly wide range of operation – the ultimate all-rounder. One day you could be foiling tiny waves on your SUP, the next you could be screaming across the harbour with a hand wing, all on the same foil.
The 810 BSC foil has quickly become our most popular prone foil, while the 1060 is the foil of choice for first season wing foilers. BSC is the go-to for SUP foiling too. If you want to wing and SUP foil with one setup, the BSC will be the ideal choice.
*If you purchase a Black Series front wing it will only fit on a Black Series fuselage as the bolt pattern is spaced differently and the fuselage is thinner to accommodate the high aspect wings.
The reason AXIS have so many options is that you can really tune your performance with the correct front wing fuselage and tail wing. Send a email or call sales@2xs.co.uk and ask Simon our Axis guru to find out mor .
Wingspan | Chord | Actual Area | Projected Area | Volume | Aspect Ratio |
---|---|---|---|---|---|
1120 mm | 220 mm | 2102 cm2 | 2007 cm2 | 3581 cm3 | 6.25 |
1060mm | 200 mm | 1803 cm2 | 1726 cm2 | 2800 cm3 | 6.51 |
879 mm | 190 mm | 1572 cm2 | 1501 cm2 | 2313 cm3 | 6.27 |
890 mm | 170 mm | 1290 cm2 | 1232 cm2 | 1697 cm3 | 6.43 |
810 mm | 155 mm | 1070 cm2 | 1022 cm2 | 1284 cm3 | 6.42 |
740 mm | 140 mm | 883 cm2 | 844 cm2 | 757 cm3 | 6.49 |
