Description

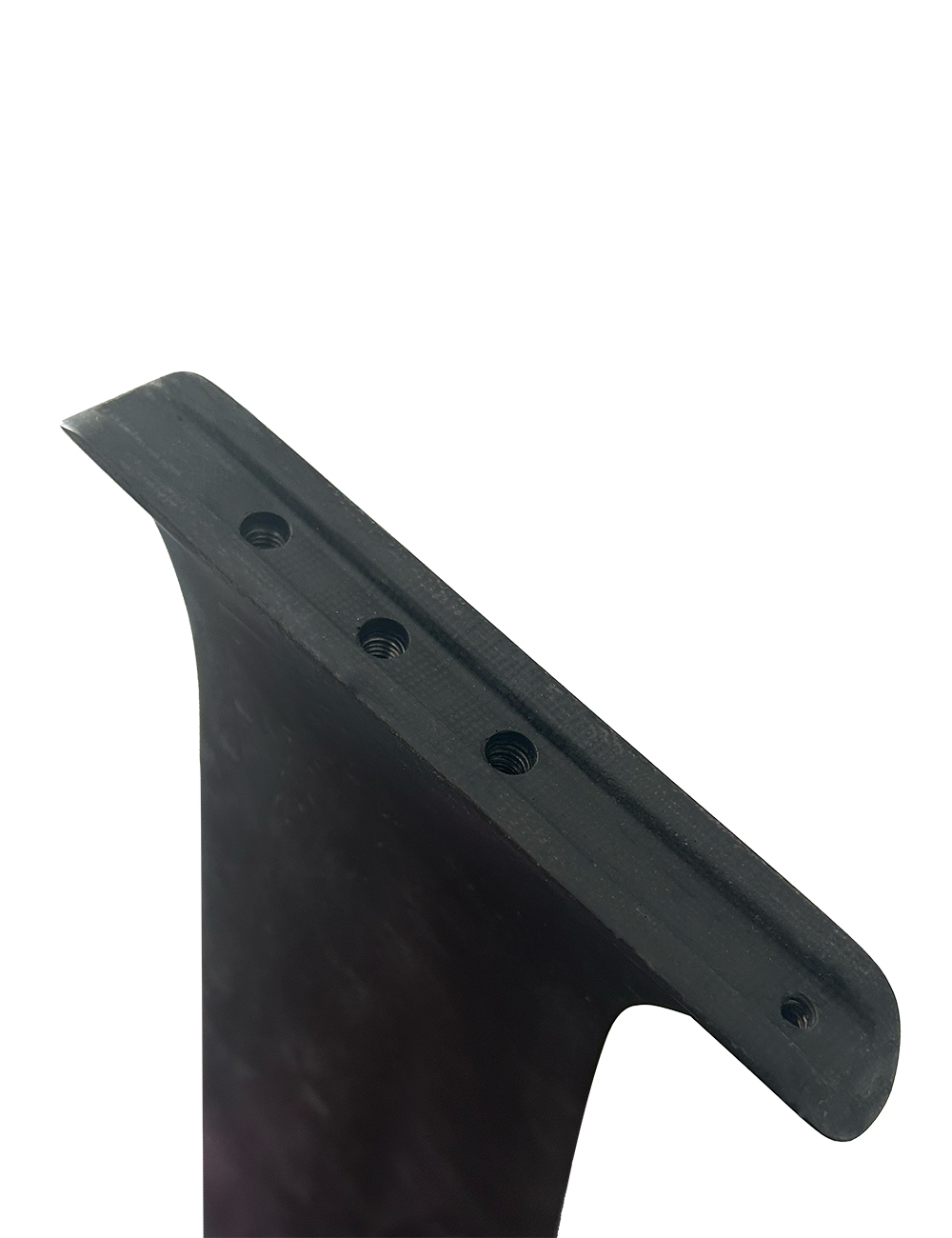

Duotone Foil Mast Slim 2.0 D/LAB
+ High-end full monobloc design
+ Slim and extremely low drag
+ Playful and direct turning behaviour
Introducing the Aero Slim 2.0 D/LAB – our most efficient mast design to date! This high-end, one-piece design is crafted for unparalleled performance and control. Featuring a slim, low-drag profile, it ensures playful and precise turning with exceptional rigidity and maximum speeds.
Each size of the Aero Slim 2.0 D/LAB is individually designed for its intended use, incorporating High Modulus Carbon fibre with optimised fibre orientation to achieve superior bending and torsional stiffness. The new optimised base plate design significantly reduces resistance while taking off, touching down and landing jumps. Combined with the tapered chord length and thickness for optimized strength with the lowest possible drag, this mast will take you a huge step forward in terms of high-end performance.
The new Aero Slim 2.0 D/LAB features a profile with high resistance to ventilation, especially focused on the longer sizes, ensuring smooth and uninterrupted performance. The 3BS connection system is compatible with all 3BS fuselages and D/LAB wings, providing versatile and reliable integration with your existing gear.
Available in three sizes – 76 cm for prone and downwind oriented riders, 84 cm for freestyle, freeride and most days in the waves, with the 94 cm suited for freerace and larger surf.
MORE PERFORMANCE FEATURES:
+ Extremely rigid for maximum control
+ Each size individually designed for its intended use
TECHNICAL DETAILS:
+ Highest level HM Carbon mix with optimised fibre orientation for highest bending and torsional stiffness
+ New drag optimised base plate design for earliest take-off
+ Tapered chord length and thickness for optimised strength vs. lowest drag
+ Profile with high resistance to ventilation (with special focus on profile of 94)
+ 3BS connection for all 3BS fuselages and D/LAB wings
SIZES:
Length | 76 cm | 84 cm | 94 cm |
---|---|---|---|
Chord | 108 mm | 110 mm | 118 mm |
Thickness (thinnest point) | 13.5 mm | 14.5 mm | 13.5 mm |
Screws 3BS | 3x M8x50 TX45 | 3x M8x50 TX45 | 3x M8x50 TX45 |
Red. TorqueScrews 3BS+ (not included comes with the matching tail) | 1x M6x32 TX45 | 1x M6x32 TX45 | 1x M6x32 TX45 |
Red. Torque | 15Nm M8/10Nm M6 | 15Nm M8/10Nm M6 | 15Nm M8/10Nm M6 |
Notes | Availability 84cm size Winter / Spring 25 |
