HIGH PERFORMANCE SPEED

High-performance foiling accessible to everyone.

This breakthrough high aspect foil was the result of a long and intensive design and prototyping process that included the development of our new ‘black’ fuselage to incorporate the reduced thickness and chord of the HPS foil section.

The camber of the HPS, a key variable in the lift versus drag trade-off, is also the lowest in the AXIS range.

But while this foil is unashamedly designed for speed and glide, the real achievement is how easy it is to use for almost all levels of rider. Where other brands’ high aspect foils are usually an unstable ‘expert only’ ride, we’ve seen people jump on HPS and rip after a just a few sessions mastering basics on higher lift foils.

This is thanks to the beautifully balanced plan-shape and carefully considered down-turn and twist, that keeps this foil turning freely and handling predictably in all conditions.

AXIS HPS has quickly become our most popular foil for winging for all levels riders once they have the basics down. A true industry benchmark. It’s also making its mark in Downwind, Prone and SUP foiling for faster or more powerful waves. Its high-speed suitability also makes it a natural choice for windsurf and kite foiling.

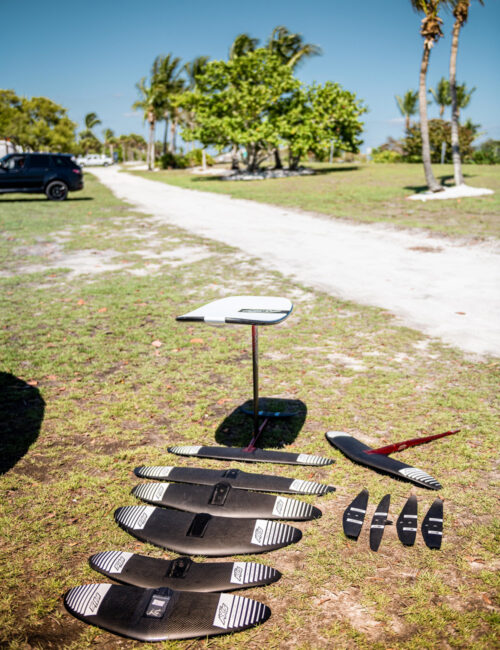

With this package you can choose between 3 mast lengths, 2 Rear Wings and all packages come with:

• Front Wing 1050 HPS Carbon
• S Series Std Length fuselage 765mm
• Doodad
• Foil Base Plate
• Stainless Screw & Toolset

1050mm HPS Carbon Front Wing

The HPS wings are the ideal performance wings for WINGING and DOWNWIND. High level riders they also SUP, PRONE, WAKE and WINDSURF foil the bigger sizes, while the smaller sizes are perfect for TOW, freestyle WINGING and KITE foiling.

Technical Data:
WINGSPAN: 1150 mm
MAX CHORD: 170mm
ASPECT RATIO: 7.55
ACTUAL AREA 1502 square cm
PROJECTED AREA: 1469 square cm
VOLUME: 1665 cubic cm

75/82/90cm Foil Mast 19mm

The 75cm mast is mostly used on bigger surf, downwinders and more advanced riding with the S-Series foil, or as a surfy option for the K-Series foil (Kite Foiling)

The 90cm mast is the choice of big wave enthusiasts and tow-ins, when combined with the S-Series 680 front wing. It’s also the choice of downwinder pros when competing in open ocean swell. The AXIS 90cm mast is the main size mast for wind foilers and kite foilers (K-Series), when they reach they are are not beginners any longer.

Carbon Rear Wing 400/390mm

The AXIS S-Series Carbon Rear Wing 400mm (wingspan) is the carving specialist. Even looser than the AXIS S-Series Carbon 440cm rear wing, it’s the most turny and performance oriented rear wing on our collection.

A must have with the 750 and 680 front wings, but also works miracles with the bigger wings, making the ride more playful and high performing.

When you purchase the AXIS S-Series 400/390mm carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.

Standard Fuselage 765mm

Incredibly strong connection to any size wings to create a very direct feel from your feet to the front wing, which is the most important part of surf foiling.

Compatible with all the S-Series front and rear wings:

Foil Base Plate 19mm

The AXIS Foil Plate mount is made with high grade Aluminium, 3d CNCed and anodized. This is not your off the shelf plate mount. This is a beautifully engineered and very stiff piece, designed to hold the mast of your foil tightly and strongly. Multiple holes give you flexibility with positioning on your foil board. And the sliding endings, let you remove the plate by just loosening the screws, w/out having to fully unscrew the M8 bolts from your board.

Doodad – Mast to Fuselage Adapter 19mm

Used to connect your 19mm Mast to your Fuselage. AKA “Doodad”

Full Screws and Tool Set

he following are included in our S-Series Screw & Key Set:

• 2 x M8*35 Countersunk 316 grade Torx drive Stainless Steel screws
• 2 x M8*70 Countersunk 316 grade Torx drive Stainless Steel screws
• Torx Key for M8
• Torx Key for M6
• 2 x M6*25 Countersunk 316 grade Torx drive Stainless Steel screws
• 4 x mast track sliders
• 8 x M8 x 25 Countersunk 316 grade Torx drive Stainless Steel screws
• 4 x M8 x 20 Countersunk 316 grade Torx drive Stainless Steel screws
